Hot stamping machines play a key role in manufacturing, creating durable imprints on many products. But even small malfunctions in these machines can reduce production efficiency and impact quality.
If you’ve faced issues with hot stamping machines, you understand the frustration of production delays and quality drops. This article provides insights to help you solve common hot stamping challenges effectively.
We’ll discuss frequent issues and practical solutions to help you keep machines running smoothly and production on track.
Table of Contents
Common Problems Of Hot Stamping Machine
Uneven Graphics and Text
Uneven graphics and text in hot stamping are often caused by common issues that disrupt print quality and clarity.
Uneven Pressure on the Printing Plate
Uneven pressure on parts of the plate can lead to inconsistent graphics and text, usually due to improper plate layout.
Solution: Level and compact the plate evenly to maintain uniform pressure, resulting in clearer and more consistent graphics and text.
Image and Text Area Size
Different area sizes affect pressure needs, with larger areas typically requiring more pressure than smaller ones.
Solution: Use padding to balance pressure between large and small areas for even results across the image and text.
Printing Speed and Foil Tightness
Incorrect printing speeds and overly tight foils can misalign graphics and text.
Solution: Adjust the rewinding and unwinding settings, and modify pressing roller pressure to ensure stable positioning and balanced pressure.
Expert Tip: Ensure the printing plate is leveled and use padding to balance pressure between large and small areas. Adjust printing speed and foil tightness for stable alignment and consistent results.
Bernadette Vumbaca, Manufacturing Specialist
Incomplete Transfer of Foil
Incomplete foil transfer is a common issue in hot stamping that affects the quality of stamped images and text. Here are common causes and solutions:
1. Low Temperature
If the stamping temperature is too low, the foil may not release fully to transfer onto the surface, leading to incomplete images.
Solution: Set the heating plate to the right temperature. For flat-bed and up-and-down machines, use 115-150℃; for cylinder machines, 135-170℃; and for rotary machines, 170-220℃.
2. Low Pressure
Insufficient pressure can cause poor foil transfer, resulting in partial designs.
Solution: Increase the stamping pressure to ensure full contact between the foil and surface.
3. Short Dwell Time
Short dwell time can disrupt complete foil transfer.
Solution: Extend dwell time to allow full contact for the entire design.
4. Misalignment or Small Edge Margin
If the foil is cut too close to the design or misaligned, it may not match the plate’s graphics.
Solution: Cut the foil neatly and leave enough margin.
If you are interested, you can click here to learn about the difference between Cold Foil Stamping vs. Hot Foil Stamping.
Excessive Adhesion of Foil
Excessive foil adhesion in hot stamping can impact print quality and precision. Here are some common causes and solutions:
a. Excessive Pressure
Too much pressure can create unwanted adhesion between the foil and substrate.
Solution: Adjust the pressure on pressing and winding rollers for balanced application.
b. Incorrect Foil Type
Using foil incompatible with the substrate may also cause excess adhesion.
Solution: Select a foil suited to your substrate for optimal adherence.
c. Foil Coating Thickness
A thick foil coating can increase adhesion risk.
Solution: Use foil with a thinner coating to avoid issues.
d. Installation Issues
Incorrectly installed foil may lead to uneven adhesion.
Solution: Install the foil securely, keeping it tight during use.
Following these adjustments gradually can help you achieve reliable, high-quality hot stamping results. If you need other hot stamping machines, such as jewelry stamping machines or metal stamping machines, you can visit our website at LeelinePack.com.

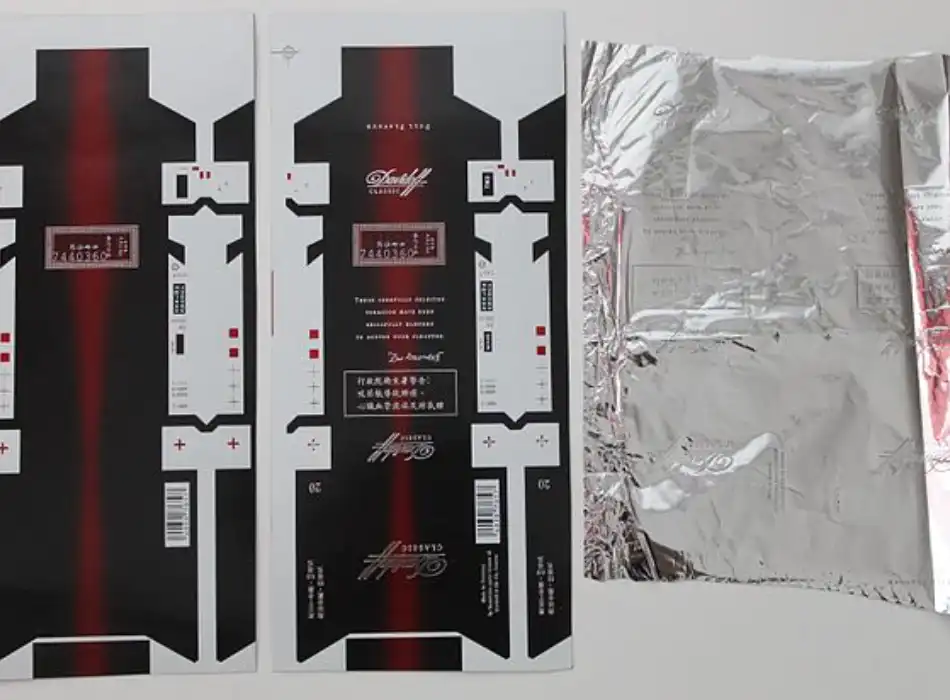

Foil Cracking or Brittleness
Foil cracking or brittleness can impact both the look and function of hot-stamped products. To prevent this, choose a foil that fits your design needs and works with the substrate material. Here are some key strategies to reduce these issues:
Key Solutions
- Select the Right Foil: Choose a foil rated for your design details and substrate type. Flexible foils with strong adhesion are essential for small text or complex designs.
- Optimize Stamping Speed: Slower stamping speeds help the foil stick smoothly to the substrate, which reduces cracking.
Additional Factors to Consider
- Material Compatibility: Make sure the foil suits the substrate. For instance, some foils are ideal for paper or card, while others perform better on book covers or leather.
- Temperature and Pressure Control: While not always the main issue, incorrect settings can worsen cracking. Use optimal temperature and pressure for better foil adhesion.
- Die Quality: A precise die helps distribute pressure evenly, supporting smooth foil application and preventing cracks.
Example Scenarios
- Leather with High Oil Content: Foils may not adhere well to oily leathers. For example, black cherry leather showed poor foil adherence due to its high oil content.
- Intricate Designs: With fine lines or small fonts, a highly flexible foil keeps the design intact without cracking.
Recommended Reading:
How To Stamp Leather For Beginners?

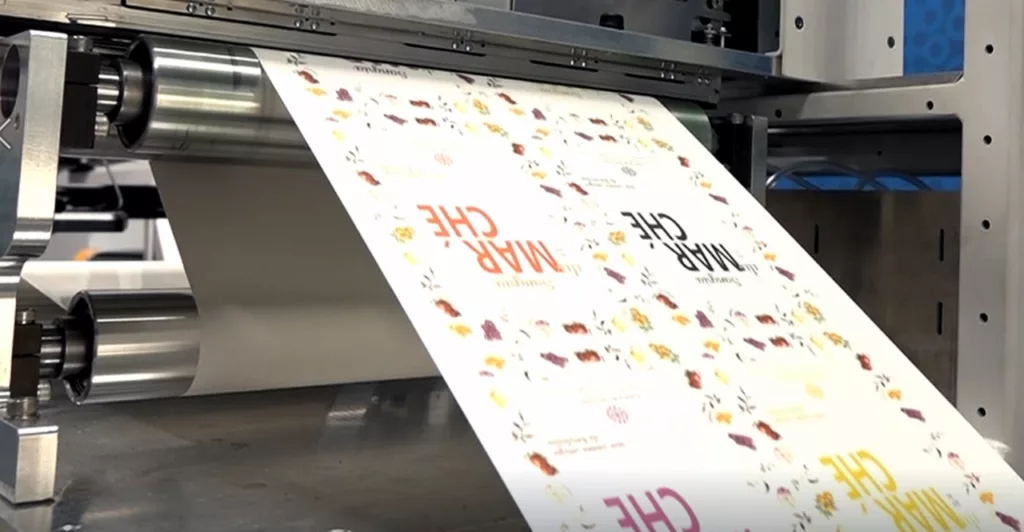

Colour Inconsistency
Colour inconsistency in hot stamping can greatly impact product quality. Addressing the factors below can help achieve more uniform results across projects.
Substrate Texture and Quality
Variations in substrate texture or quality can cause colour differences. Using materials with uniform texture ensures each impression looks consistent, maintaining quality standards.
Foil Batch Variations
Foils from different production batches may show slight colour variations. To prevent this, use foils from the same batch for a project to ensure consistent colour across all items.
Environmental Conditions
Humidity and temperature changes can affect hot stamping results. Keeping foils in a stable environment prevents colour shifts, as extreme conditions can alter the stamping material’s properties.
Machine Calibration
Regular calibration is key to maintaining stable pressure and temperature:
- Temperature Control: Excessive or insufficient heat affects colour results. Set the temperature according to the foil’s specifications for optimal consistency.
- Pressure Consistency: Uneven pressure can cause colour variations. Use padding techniques to ensure even pressure across the stamping area.
Ink and Coating Issues
Additives in ink, like excess drying oil, can cause crystallization, disrupting the stamping process. Minimizing crystallization with controlled heating or using absorbent paper before stamping can resolve this issue.
Pro Tip: Choosing high-quality foils with suitable adhesive strength is essential. Use foils with a thin, even coating and secure installation to achieve consistent colour output.
Adhesion to Die
In the hot stamping process, adhesion to the die can be a common issue, often disrupting production. Here’s a look at the main factors behind this problem and some effective solutions:
Incorrect Release Layer
If foil sticks to the die instead of the substrate, it may be due to an incorrect release layer on the foil. Make sure to use foil designed for your die type to prevent adhesion problems.
Unsuitable Die Material
Using incompatible die material often leads to sticking issues. Confirm that the die material matches the foil, whether it’s silicone rubber, metal, or other materials, as incompatible materials can interfere with the stamping process.
Application of Release Agent
Applying a release agent helps reduce sticking between the foil and the die. This simple solution prevents adhesion and keeps production running smoothly.
General Solutions and Considerations
To improve the performance of hot stamping machines and achieve quality results, consider these key solutions:
Temperature Adjustment
- Set Optimal Temperature: Keep the temperature within the ideal range for each foil type. High temperatures may cause unintended transfers and blurry details, while low temperatures can lead to incomplete stamping.
Pressure Adjustment
- Ensure Balanced Pressure: Apply the right pressure for a smooth transfer. Low pressure can cause incomplete stamping, while high pressure may create blurs. Adjust padding, especially for large text or images, to keep pressure consistent across designs.
Foil Selection
- Choose Suitable Foil: Select foils that match the substrate and design details. Incorrect foils may crack or stick too much. Thinner foils can help prevent blurring and over-adhesion.
Machine Calibration
- Calibrate Regularly: Regular calibration keeps pressure and temperature stable. Ensure the pressure-regulating nut is secure for even pressure during stamping.
Die Material and Maintenance
- Maintain Die Quality: Use high-quality die materials and clean the die surface regularly for smooth foil release. Check that the printing plate is undamaged and properly aligned to avoid incomplete transfers.
Conclusion
Hot stamping machines can face common problems like uneven stamping, temperature fluctuations, and alignment issues that affect product quality. Recognizing these issues is key to maintaining machine efficiency and achieving consistent results.
If your business has specific stamping machine requirements, contact us at LeelinePack for dependable solutions and high-quality machinery.
FAQ
1. How can I fix blurry text and images during hot stamping?
Blurry results can be caused by excessive heat or pressure. Lower the temperature and adjust pressure to achieve clear and precise prints.
2. Why does the hot stamping foil stick to the substrate?
This issue usually occurs due to high stamping temperatures. Reducing the heat can prevent the foil from sticking and ensure clean results.
3. What role does foil thickness play in hot stamping quality?
Thicker foil can cause blurring. Opt for thinner foils to improve image clarity and avoid distortion.
4. How can I prevent pressure imbalance during hot stamping?
Uneven pressure distribution can be corrected by leveling the printing plate and using padding to balance large and small areas.
